Ningbo Senhuida Machinery & Electric Manufacturing Co., Ltd.

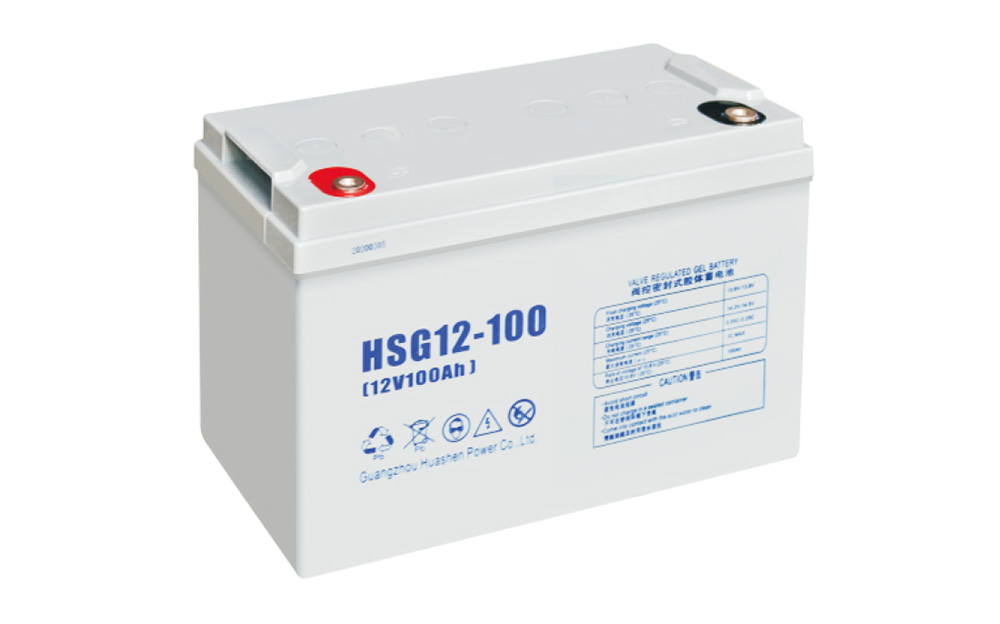

Battery HSG-12-100

Battery Characteristics

Nominal voltage	12V
Nominal capacity (20-hour rate)	100Ah
Capacity at 25℃ (77℉)	20-hour rate (10.8V)	100Ah
	3-hour rate (10.5V)	65Ah
	1-hour rate (10.5V)	43Ah
Internal resistance	Fully charged battery at 25℃	≤4.5mΩ
Discharge capacity at different temperatu res (10 hours)	40℃(104℉)	102%
	25℃(77℉)	102%
	0℃(32℉)	85%
	-15℃(5℉)	65%
Self-discharge residual capacity 25℃ (77℉)	After 3 months	91%
	After 6 months	82%
	After 12 months	64%
Chargin g method 25℃ (77℉)	Float charge	Current: 0.05C0.15C Voltage: 13.6-13.8V
	Equaliz ed charge	Current: 0.05C0.15C Voltage: 14.2-14.5V

Battery specification

Nominal voltage		12V
Battery size	Length	330±2mm
	Width	171±2mm
	Height	214±2mm
	Total height	220±2mm
Terminal model		T16
Net weight		28.3kg±3%
Gross weight		28.5kg±3%

Certification

Application Settings
◆ Control system, alarm system, power system, railway system
◆ Emergency light, emergency lighting system, backup power supply, UPS
◆ Telecommunications equipment, fire and security systems, power stations
◆ Power tools, power toys

Superiorities
◆ Product design life up to 10 years
◆ Safe and reliable sealing
◆ High specific energy, small internal volume, low self-discharge rate
◆ High charge receptivity, high seal response efficiency
◆ Innovative plate manufacturing process with high utilization of active substances
◆ High purity electrolyte and special additives, low self discharge
◆ Multi-layer sealing technology and pig iron sealant to ensure the safety and reliability of the battery with no leakage and no acid mist overflow.

Technical Features
◆ High-strength ABS plastic battery with compact structure from slot to cover, impact resistance, excellent anti-vibration performance.
◆ Special lead-based multi-alloy plate grid, small liner, excellent corrosion resistance, high charge acceptance capacity
