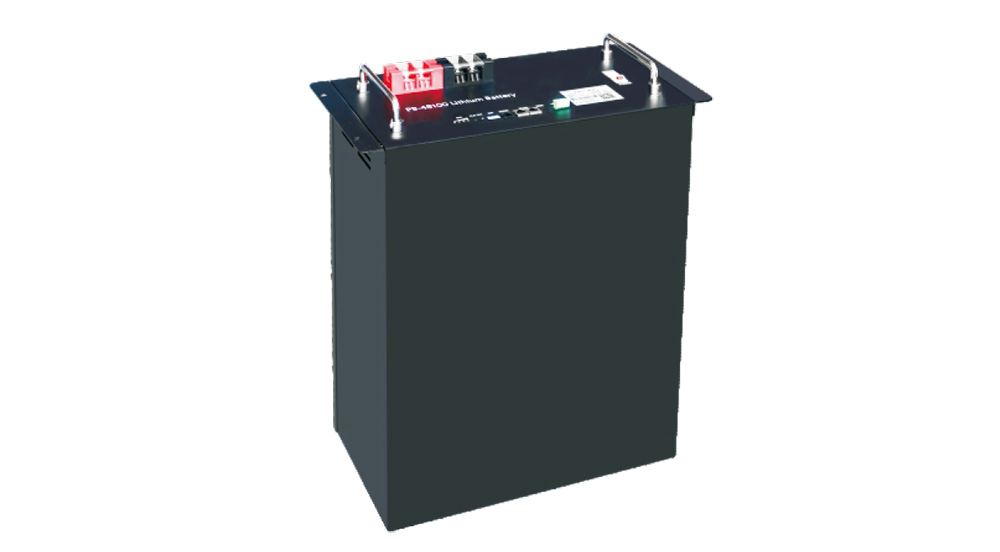

48V100Ah battery performance lithium iron phosphate battery

48V100Ah battery performance lithium iron phosphate battery

Basic reference

Product module	48V100Ah
Single cell type	5.6Ah LiFePO4 cell
Combination method	16S18P
Rated capacity	5.22kWh
Rated voltage	51.2V
Voltage range	35.2-60V
Delivery voltage	40V~45V adjustable
Discharge termination voltage	53.6V~55.2V float charge
Charging voltage	55.2~57.6V equalized charging
Continuous discharge current	100A
Charge and discharge efficiency	≥95%
Discharge depth	80%DOD deployable
Number of battery pack cycles	1000 cycles at 1C, room temperature, capacity retention: 80%
Total weight of battery pack	Within 50kg
Ambient relative humidity	10%-90%
Size	433398205mm(excluding handle)
Self discharge	25℃，≤5% per month
Communication mode	Dual 485 communication (232 monitoring optional)
Type of protection	Over-current, over-voltage, under-voltage, short-circuit, over-temperature, reverse connection
Material	Black box SPCC
Working temperature	Charge -2060°C Discharge 20-60°C 25-45°C is the optimal storage temperature range
Installation method	Equipment cabinet
Wiring method	Wiring terminal

Main performance characteristics
◆ Adopt lithium iron phosphate batteries, safe and environmentally friendly.
◆ Protection functions such as total battery voltage and single cell overvoltage, undervoltage, charge/discharge overcurrent, high/low temperature and short circuit.
◆ Support high-precision detection of voltage, current and temperature.
◆ Featuring an automatic switching of charge and discharge.
◆ Featuring automatic sleep switch function to keep the system low power consumption in non-working mode.
◆ Featuring cell balancing function.
◆ Featuring modular design, full top total maintenance.
