Cabinet Air Conditioner Manual

1：Product Overview

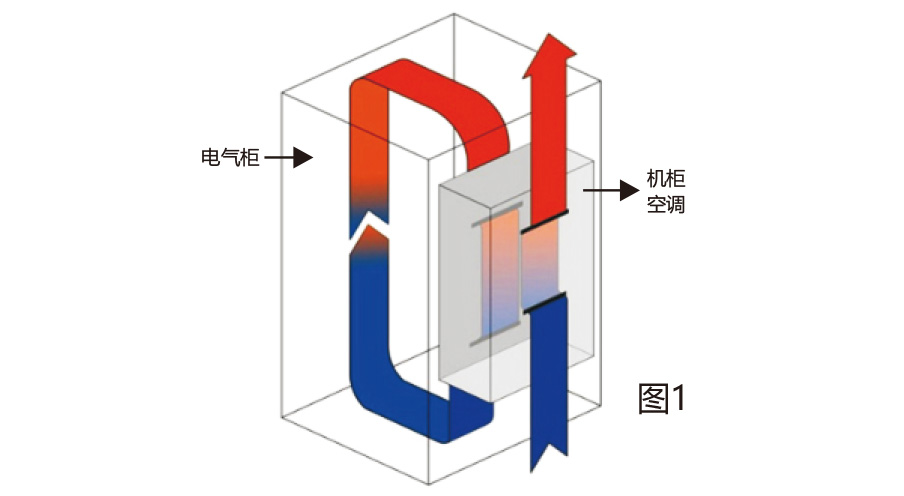

Cabinet air conditioners are designed to enable heat absorption and cooling through compression cooling, which transfers the heat emitted from the equipment inside the cabinet to the outside of the cabinet in a sealed environment. High temperature, dust and other dirty gases outside the cabinet are prevented from entering the inside of the cabinet, thereby solving a series of problems caused by fan cooling. The inside of the cabinet can always be maintained in an ideal temperature environment of about 25 ℃, so that the stability of electronic equipment is effectively guaranteed. (Fig. 1)

Product Features：
◆ It is widely used in applications requiring heat dissipation such as outdoor communication cabinets, battery cabinets, electrical cabinets and industrial control cabinets.
◆ Internal and external cycle IP55 protection rating, dustproof and waterproof, can be installed both indoors and outdoors.
◆ The system is suitable for high/low temperature working conditions of 55℃/-15℃.
◆ Digital temperature controller with high control accuracy.

2、Air conditioner structure (side mounted air conditioners are not barred, door mounted air conditioners are barred)

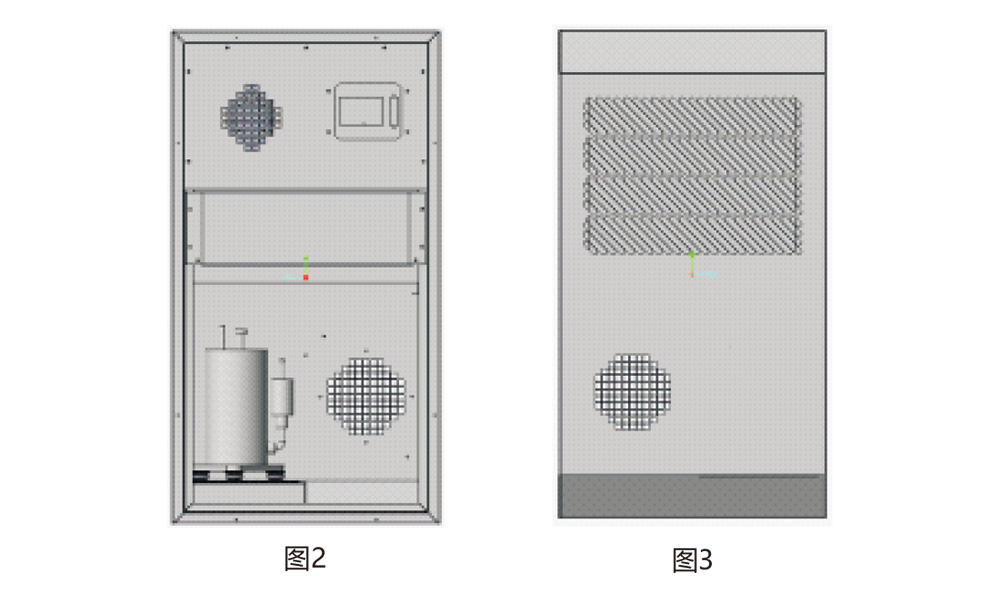

Air conditioner front side (indoor side circulation), Figure
2: Air conditioner back side (outdoor side circulation), as shown in Figure 3.

3、Performance parameters
