GPE48200E-F Embedded power system
High-performance and high-reliability power supply products

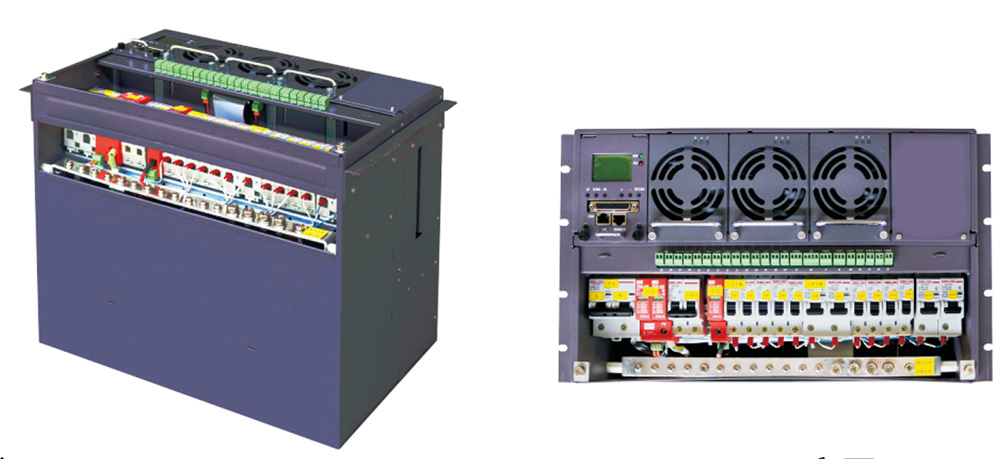

GPE48200E-F Embedded power system
Input:90~290Vac; Output:-42.5~-58Vdc
Characteristics
¡ô Embedded power supply system adopts active power factor compensation technology, with a power factor>0.98 ¡ô The AC input voltage has a wide normal operating range of 90¡«290Vac.
¡ô The system has a wide working temperature range of -25¡æ¡«+55¡æ.
¡ô Soft-switch technology is adopted with the system efficiency ¡Ý91%
¡ô Well-managed battery with functions such as charge and discharge management, battery temperature compensation, battery capacity test, reverse battery protection, and lowvoltage protection to prolong battery life.
¡ô The system uses non-destructive hot plug technology for easy maintenance.
¡ô Input over- and under-voltage protection
¡ô Output over-voltage protection
¡ô Output over-current protection
¡ô Output short-circuit protection
¡ô Automatic current sharing technology for parallel output
Applications
¡ô Small programmable switches¡ô Access network
¡ô Transmission facility
¡ô Mobile communication
¡ô Satellite communication earth station
¡ô Microwave communication power supply
System Overview
GPE48200E-F System Configuration
The GPE48200E consists of the frame power distribution, rectifier module (minimum 1, maximum 4), and a monitoring module, for specific optional modules, please refer to the following table.
| Configur ation | Rectifier module | Monitoring module | Power distributi on | Remark |
| Standard configuration | GPR4850 Series | GPM48P-A (with Ethernet interface) | AC distribution: single-phase input, mains powered AC circuit breaker (80A/2P); DC distribution: battery air switch 100A/1P¡Á2; primary discharge: 32A¡Á2, 63¡Á2, 16¡Á6 (Air opening size optional). Secondary discharge: 16 Ax2, 10Ax2 (Air opening size optional). | For specific indicato rs, please refer to the module specifica tions |
Basic input characteristics
| Item | Minim um | Typical | Maxi mum | Unit | Note |
| Input voltage range | 90 | 220 | 290 | Vac | |
| Input frequency | 45 | 50 | 65 | Hz | |
| Maximum input current | 67 | A | |||
| Power factor | 0.98 | Rated load | |||
| Input overvoltage protection point | 300 | Vac | Automatic recovery available | ||
| Input overvoltage recovery point | 290 | Vac | Loopback not less than 5V | ||
|
Input undervoltage protection point |
85 | Vac | Automatic recovery available | ||
| Input undervoltage recovery point | 90 | Vac | Loopback not less than 5V | ||
| Input overcurrent protection | AC input side with air switch for protection |
Basic input characteristics
| Item | Minim um | Typical | Maxi mum | Unit | Note |
| Output voltage | 42 | 53.5 | 58 | Vdc | Adjustable by monitoring, no-load test |
| Output power | 10700 | W |
10,700W output at 176~290VAC input (rated power |
||
| 5350 | W | ÊäÈëΪ90~175VAC | |||
|
Output overvoltage protection point |
58.5 | Vdc | Lock | ||
| Output current limiting protection point |
|
With output current limit protection | |||
| Output short circuit protection | Long term short circuit, self recovery | ||||
| Over temperature protection | It can recover automatically at 65 ¡æ | ||||
| Battery power down protection | With battery power down protection | ||||
| Battery polarity reversal protection | No damage to battery and power system | ||||
| Voltage stabilization accuracy | ¡À1 | % |
