1. Product Overview

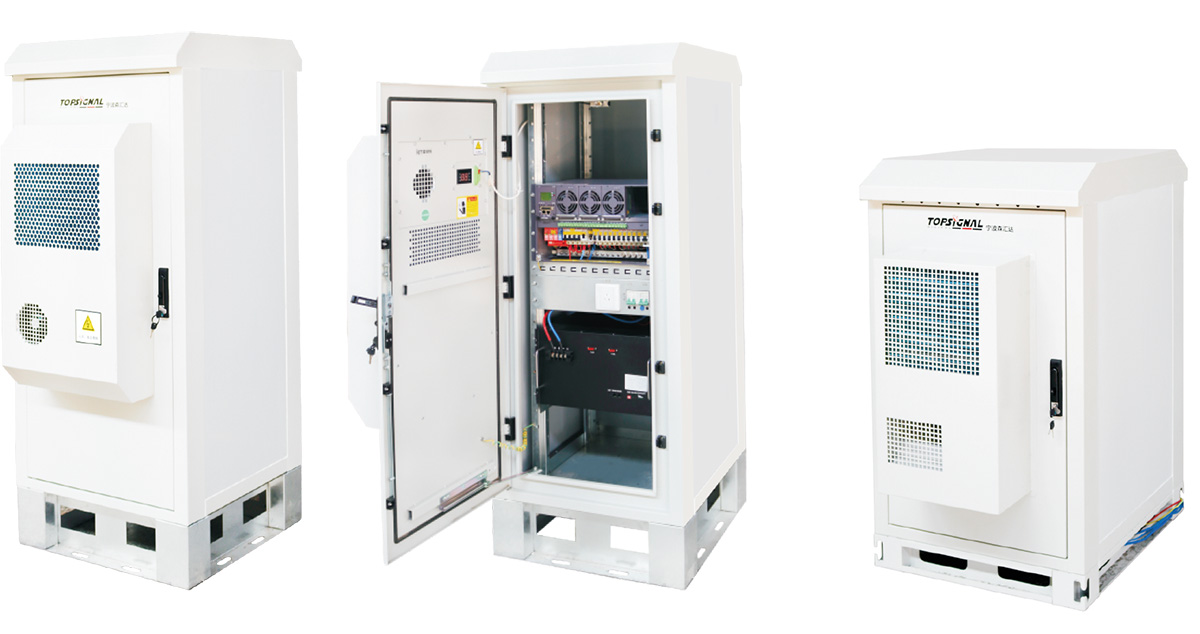

Intelligent thermostatic outdoor integrated cabinet, with configuration including cabinet, power distribution unit, embedded switching power supply, backup battery pack, lighting, industrial air conditioning, etc.

Performance indicators;

      The cabinet has a protection level of IP55, with a cold-rolled steel plate frame, front door opening, and 45 mm thick heat-insulated flame retardant sandwich panel on the side and back of the cabinet. The door adopts built-in structure, the door seam is even and compact, and the opening angle is >110°. The door is equipped with a door limit device and adopts a three-point structure mechanical lock with a tie rod and a locking piece, which is of solid structure and has the function of pry-proof and strong security. The door is equipped with 1500W semi-embedded industrial air conditioning, which is aesthetic, easy to handle and maintain. It also features constant temperature, waterproof and dustproof performance and can satisfy various environmental requirements in different areas.

      The cabinet adopts the bottom in and out wiring method. Cabinets are installed with trunking to facilitate wiring, where AC lines, DC lines, signal lines, and ground lines are routed separately, and full consideration is given to electromagnetic compatibility.

      Industrial air conditioners are mounted on cabinet doors and do not take up interior cabinet space. Air conditioners operate at a constant temperature to provide an optimal operating environment for electrical equipment and thereby extending the life of electrical equipment. The top of the cabinet is illuminated when the door is opened, which facilitates nighttime maintenance.

      The cabinet is equipped with mains and oiler interlock air switches, and 220V power outlets for easy conversion and use in case of emergency.
